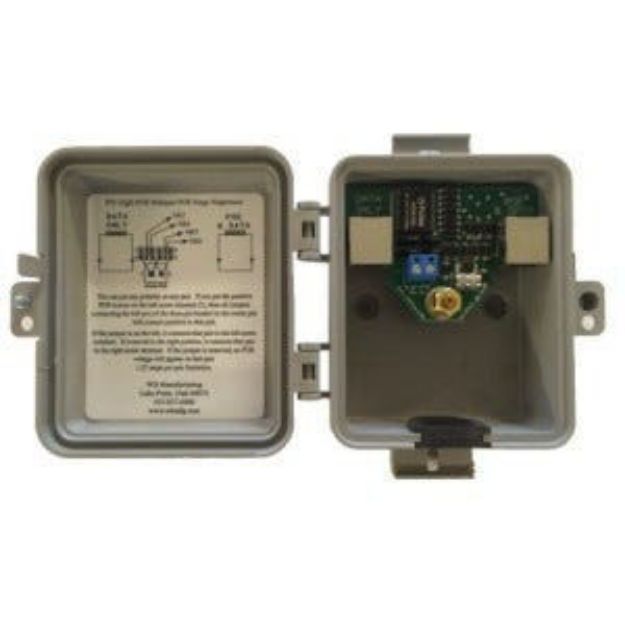

McCown Technology 800-GIGE-POE GbE PoE Surge Suppressor High Voltage

KEY FEATURES:

Outdoor GigE protector with midspan PoE insert/extract. Any polarity on any pair - total flexibility. Faster acting than Thyristor and Gas Tube only designs

SKU: MCC-800-GIGE-POE

Availability:

Ohio : 5

Utah : 4

$59.95

Qty:

i h h

Overview

Outdoor GigE Ethernet surge suppressor – protector with midspan POE insert/extract. Configuration via jumper plugs allow any combination of polarity and pair use with up to 500mA per pair. If all 8 wires are configured as the same polarity, 2 amps can be conveyed. This device will power 802.3af/at devices or extract power from a POE powered circuit. This device is also designed to protect GigE over copper equipment in an outdoor environment. Shielded RJ45 jacks provide grounds to shielded plugs.

Features & Applications

GigE Ethernet surge suppression design with low clamp voltages
Shielded RJ45 connectors provide a ground to shielded plugs
Ultra fast suppression – typically less than 1.0ps from 0 Volts to BV min
Faster acting than Thyristor and Gas Tube only designs
Lower loss and crosstalk than Thyristor based designs
Ethernet CRC error correction circuit
Tool-less entry
Cover is hinged
Dust tight
Back knockout feature for concealing wires
Ultra fast suppression – typically less than 1.0ps from 0 Volts to BV min
Up to 2.00 amp total (500mA per pair) POE capability (RJ45 limits are 500 mA or less per pair)
Any polarity on any pair – total flexibility

Backhaul radios

Point to point microwave radio powering

Installed at outdoor tower colocation sites

Conveying power over unused Cat5/6 cables

Emergency spare POE

Pulling power from POE circuits

Powering Cameras

Up to 68 volts AC or DC

Note: Does not allow “split pair” powering for devices like Canopy PMP430, or direc DC-powered devices like PMP100.
