The Siklu by Ceragon EtherHaul PtP Series offers trusted, field-proven radios operating in the 60 GHz (V-band) and 70/80 GHz (E-band) spectrums. As pioneers in the millimeter wave (mmW) space, these solutions set the benchmark for competitively priced, ultra-compact radios that work straight out of the box.
Designed for high-demand environments, EtherHaul radios deliver unmatched reliability and multi-gigabit throughput, ensuring high-availability, point-to-point wireless connectivity where it matters most.

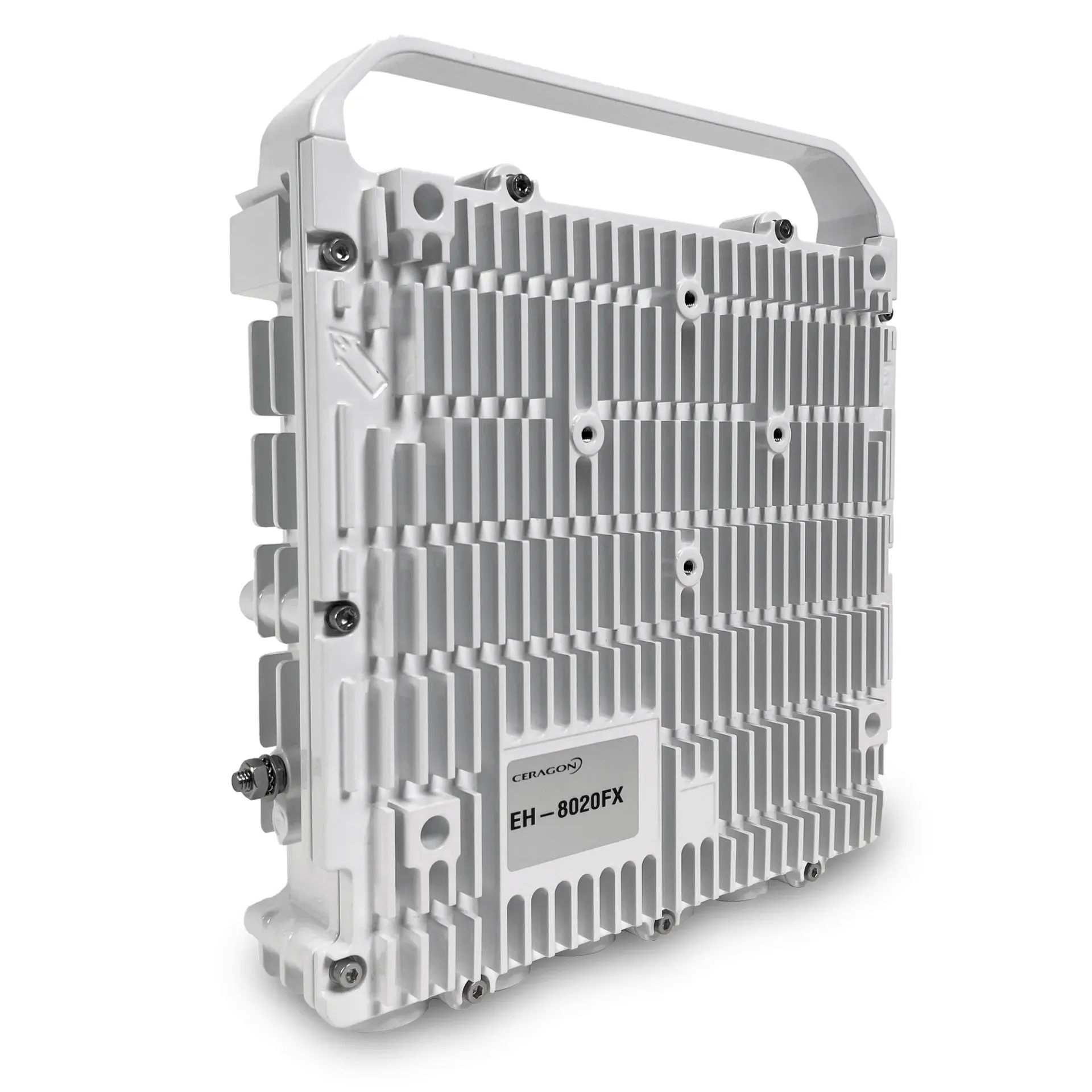

EtherHaul™ 8020FX ODU with AES HW & license, with ANT. port, TX High; Power: DC/PoE; Capacity up to 10Gbps; Ports: 2x SFP+ , 1x RJ-45 for management/traffic, 1x XPIC; 2x short All Weather Shells
Products specifications
|
Max Data Rate
|
10 Gbps FDX |
|
Antenna Type
|
External (adapter) |
|
Uplink Port
|
2x SFP+ 10GbE, 1x RJ-45 GbE, 1x XPIC port |
|
Power Method
|
PoE, DC |
|
Antenna Gain
|
43 dBi (1 ft), 50 dBi (2 ft) |
|
Frequency
|
81-86 GHz |
|
Max Power Consumption
|
50W |
|
Operating Temperature
|
-49 to 131°F (-45 to 55°C) |
