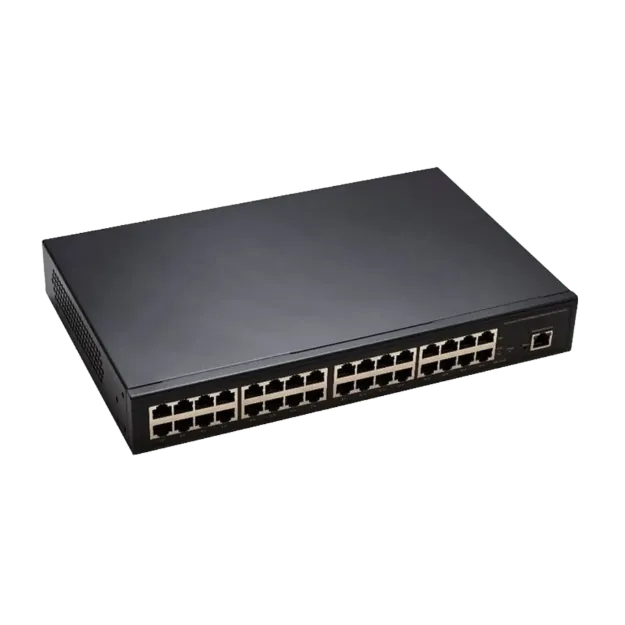

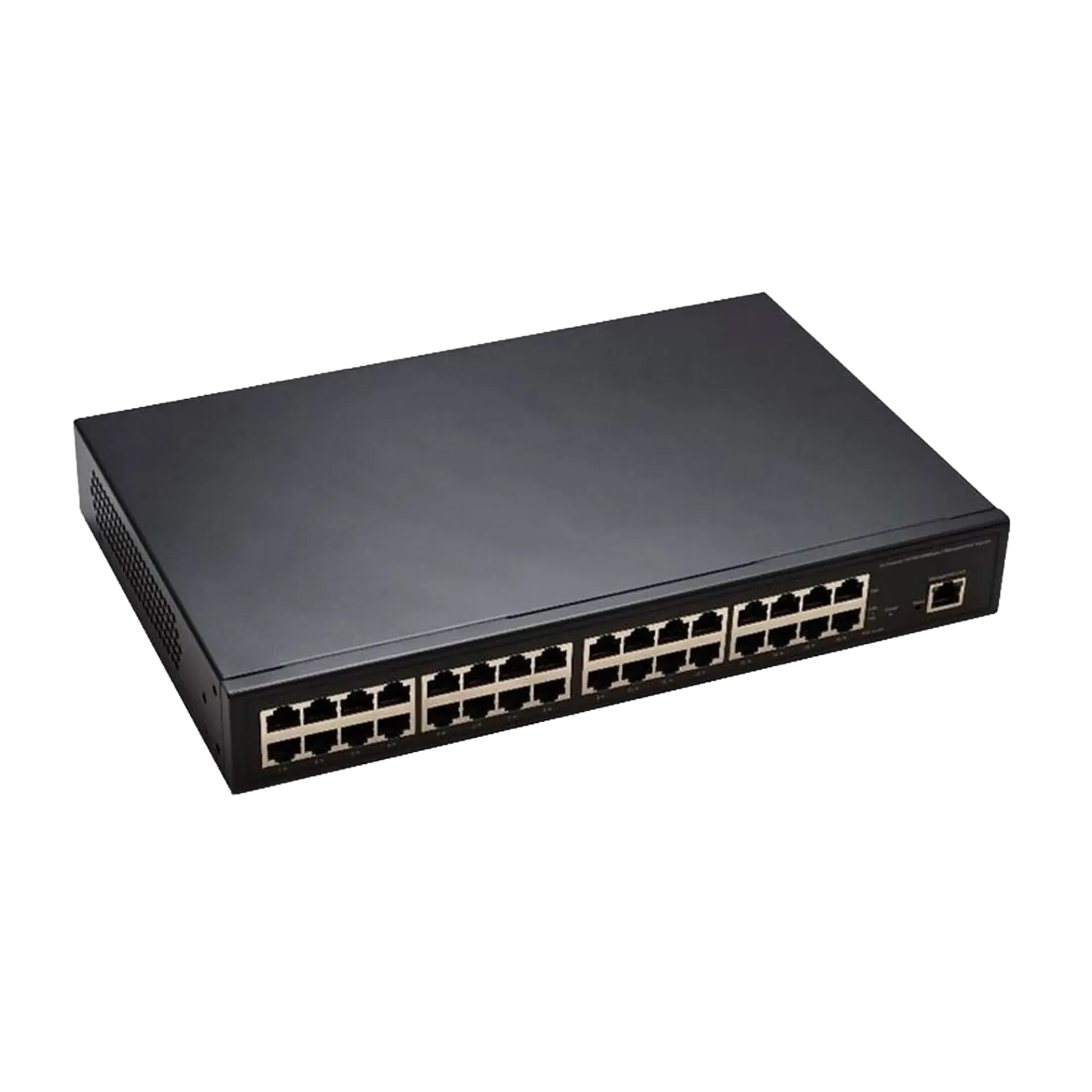

Tycon Power Systems TP-MS16-AT 16 Port GigE Mid Span 802.3at 250W AC Powered/450W DC Powered Mgmt

The TP-MS16-AT is a robust 16-port Gigabit Ethernet PoE+ midspan injector that powers up to 16 devices supporting 802.3af or 802.3at PoE standards. It provides up to 250W total power with AC input. When using the auxiliary DC input, power output depends on the DC supply, with up to 450W total PoE power possible. The DC input can also act as a backup if AC power fails.

Suitable for indoor or outdoor use (in a weatherproof enclosure), it has a powder-coated metal housing and operates reliably in temperatures from -20°C to +60°C.

LEDs indicate system power and confirm when each PoE port is powering a device.

Manage the injector via an Ethernet network connection using a web browser. Key features include:

• Monitoring total power across all ports
• Setting and checking power for each port
• Turning PoE power on/off per port and rebooting devices
• Viewing event logs
• Controlling port power-up order and timing
• Scheduling port power activation
• Running automatic PoE checks
• Sending SNMP notifications
