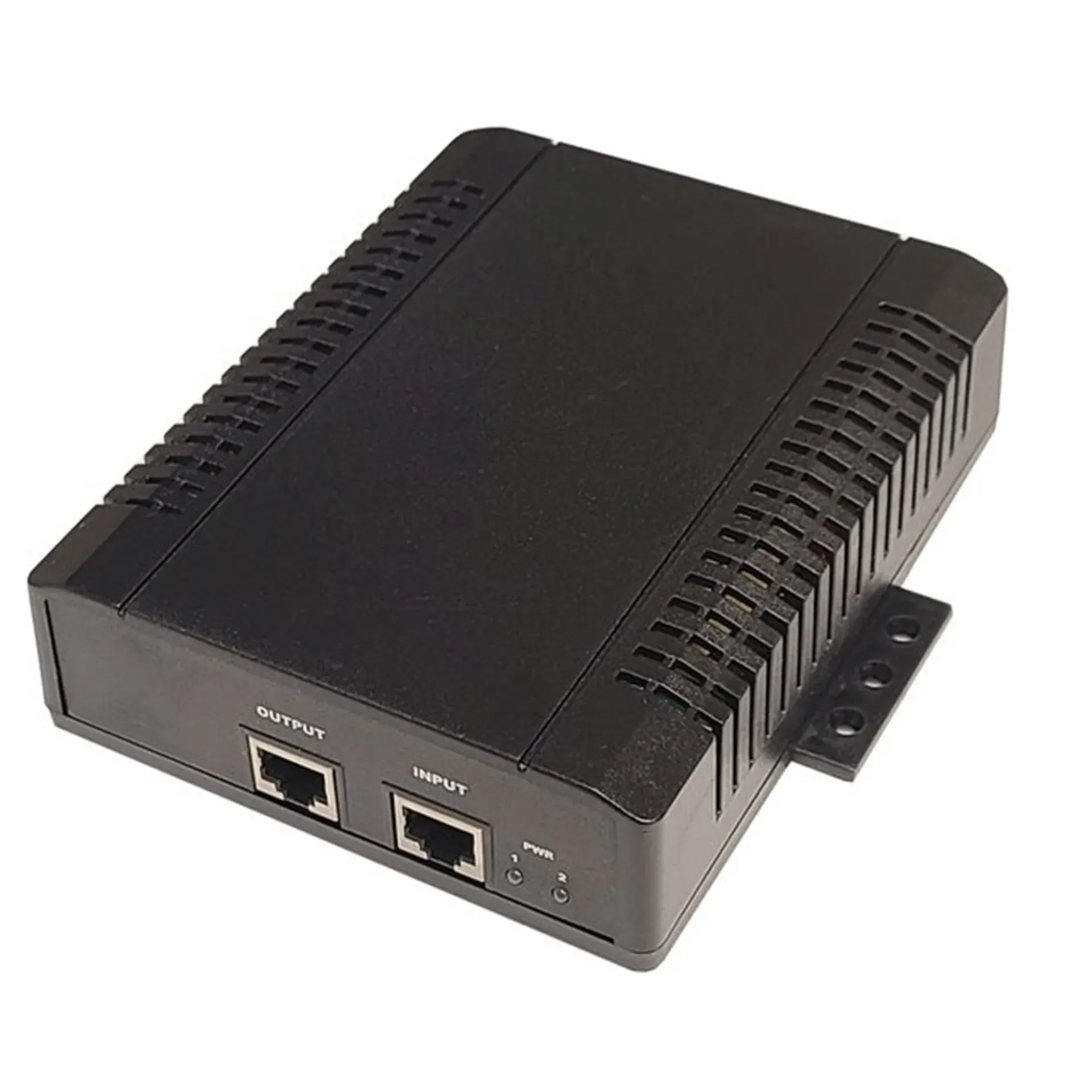

Tycon Power Systems TP-POE-HP-56G-100W 56V 100W High Power Gigabit Passive PoE

The TP-POE-HP-56G Power over Ethernet Power Sources offered by Tycon Power® are quality 5 Gigabit midspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on all 8 Ethernet wires. The Ethernet spec supports distances up to 100m (328 feet).

The units are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated 56VDC at the output. They have various protections for surge, short circuit, overload and overvoltage. They have total power output up to 112W.
