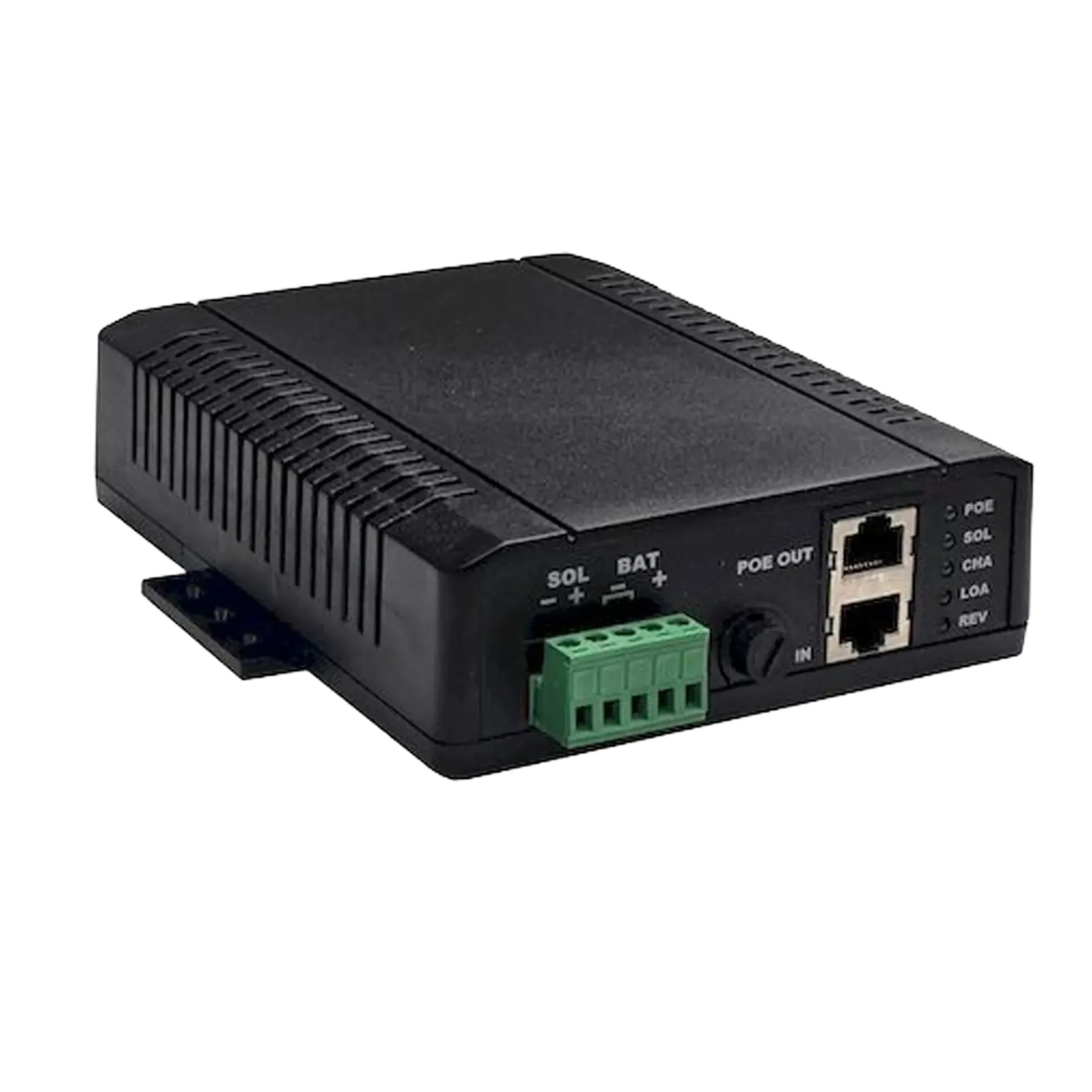

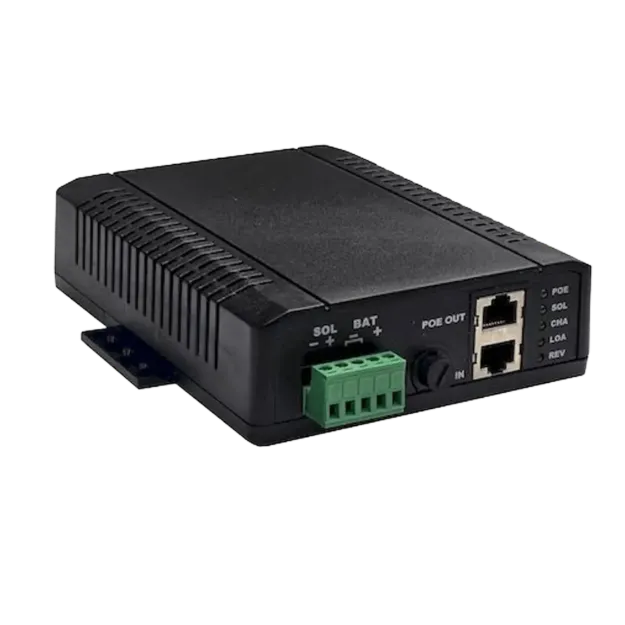

Tycon Power Systems TS-SCPOE-24AT-G 24V 10A PWM Solar Controller 24V 10A & 802.3at PoE OUT PV/PoE Ch

Tycon Solar® SCPOE PoE/Solar charge controllers are designed to keep critical systems running by charging batteries using two power sources: Power over Ethernet (PoE) and solar panels. This dual-input setup ensures reliability and uninterrupted operation. When sunlight is available, the controller prioritizes solar power to reduce reliance on grid electricity.

Key Features:

• Built-in PoE Injector: Delivers a steady 56VDC, 35W output via a Gigabit 802.3at PoE connection.
• Comprehensive Protections: Guards against short circuits, reverse current, overvoltage, overcharging, and over-discharging (LVD).
• Status Indicators: Five LEDs show whether the power source is PoE or solar, if the battery is charging, if the load output is active, and if the battery is incorrectly connected.
• Connections:
  • Solar, battery, and auxiliary load connections use five screw terminals for wires up to 10AWG.
  • PoE input and output use two shielded RJ45 connectors.
• Fuse Protection: Includes a replaceable 12A fuse.
• Power Capacity:
  • TS-SCPOE-12AT-G: Supports up to 120W for connected devices.
  • TS-SCPOE-24AT-G: Supports up to 240W for connected devices.

This setup ensures efficient, reliable power management for demanding applications.
