Wide Temp 12V10AH Aluminum LFP Battery with F2 0.25″ terminals. 5.94″L x 2.56″W x 3.94″H. Charge current 1.62A. >3000 cycle life. -30C to + 60C Charge Temp.

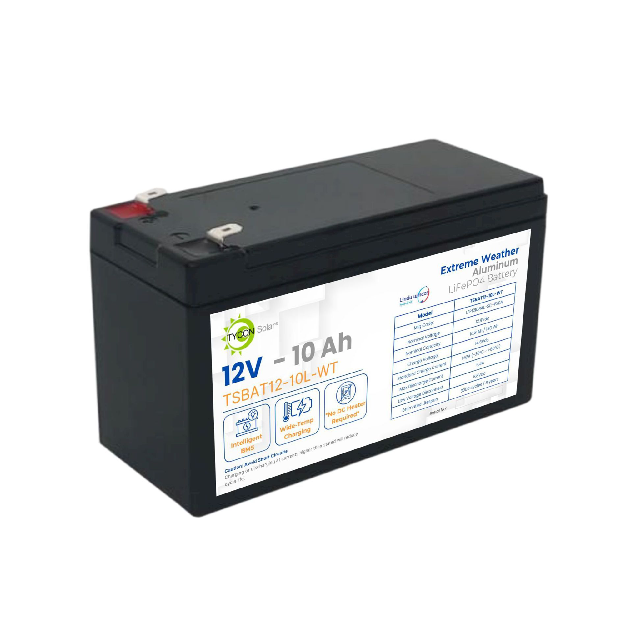

High-Performance, Wide-Temperature LiFePO4 Battery
The TSBAT12-10L-WT LFP (LiFePO4) battery is a high-reliability, wide-temperature drop-in replacement for comparable Lead Acid batteries. Designed for longevity and efficiency, it delivers over 4,000 discharge cycles at 80% depth of discharge—nearly 20 times the lifespan of a typical Sealed Lead Acid (SLA) battery. Plus, with nearly twice the usable energy storage for the same Ah rating, this battery maximizes performance in critical applications.
Extreme Temperature Charging Without Additional Heating
Unlike traditional LiFePO4 batteries, which typically require DC heaters for charging in freezing temperatures, the TSBAT12-10L-WT features an advanced aluminum anode, allowing it to charge down to -30°C without compromising cycle life. This innovation eliminates the need for external heating solutions, making it ideal for harsh environments.
Seamless Drop-In Replacement with Integrated Battery Management
Equipped with an integrated Battery Management System (BMS), this battery automatically regulates charging and discharging, ensuring safe operation. Even better, it is fully compatible with existing solar or grid-connected chargers designed for Lead Acid batteries. Combined with its standard mechanical size, this makes installation quick and hassle-free—simply drop it in, connect, and power up.
Enhanced Safety and Lightweight Design
Built with stable LiFePO4 chemistry, this battery significantly reduces the risk of explosion, combustion, or damage from impact, overcharging, or short circuits. Additionally, it is 40% lighter than traditional Lead Acid batteries, making it easier to transport and install, especially in remote or off-grid locations.
Expandable for Higher Capacity and Voltage
For increased power needs, up to four batteries can be connected in series to achieve a higher voltage or in parallel to expand energy storage capacity. Featuring two F2 spade terminals, the battery supports secure and reliable cable connections for various applications.
Long-Term Storage Recommendations
To ensure optimal performance during extended storage, it is recommended to charge the battery to 60% every six months. This practice helps maintain battery health and prolongs service life.
With its exceptional durability, advanced technology, and seamless integration, the TSBAT12-10L-WT is the ideal high-performance battery solution for demanding energy storage applications.
