Charge Controllers

• Provides Windows PC Connectivity for Tycon RS485 MPPT Solar Controllers
• Compatible with the following models: TP-SC24-30N-MPPT TP-SC24-60N-MPPT TP-SC48-60P-MPPT
• Works with MyGreen Solar Monitor PC Software
• Powers from PC USB Port

• MPPT Temp Compensated Charging (99.5% Efficient)
• Color LCD Displays: Battery/Load/Solar Volts/Amps/Watts, Battery Temp, and Battery Level
• Fully Automatic Operation
• Auto-ranging 12V or 24V Battery Arrays
• Multimode Load Operation Ð 4 selectable modes

• Dual Input Ð Charges 12V or 24V Batteries from Solar Panel and / or Passive PoE
• Built in DC to DC converter with various Passive PoE output voltages available: 48V
• Compact and high temperature operation
• Low self consumption < 0.5W Applications
• Remote Power Systems; Surveillance, Sensors

• 12VDC 300W Wet/Gel Smart Battery Charger, 120/240 VAC in, overdischarge protection. Regulated 12VDC Load Output

KEY FEATURES:

• 48V 600W Total Power
• Over-Voltage, Over-Current, Reverse-Current, Over-Load, Short-Circuit Protections
• Led indicator: Red=Charging, Green=Battery Full/Float Charge
• CE Certification

• 24V 120W Total Power
• Small Form Factor, Low Cost
• Over-Voltage, Over-Current, Over-Temp, OverLoad, Short-Circuit Protections
• Led indicator: Red=Charging, Green=Battery Full
• Wide temperature operation

• 48V 120W Total Power
• Small Form Factor, Low Cost
• Over-Voltage, Over-Current, Over-Temp, OverLoad, Short-Circuit Protections
• Led indicator: Red=Charging, Green=Battery Full
• Wide temperature operation

• Dual Input Ð Charges 24V Batteries from Solar Panel and / or Passive PoE
• Supports up to 60W Device Load
• Regulated Output Voltage
• Compact and high temperature operation
• Low self consumption < 0.5W

• 3 Stage PWM Temperature Compensated Charging
• Fully Automatic Operation
• LCD Displays Battery Voltage, Temp, Load Current and Solar Current.
• Autoranging 12V or 24V GEL/AGM Battery Arrays
• Multimode Load Operation Ð Normal (default) or Light Control

• Battery Charger
• 63V 600W Total Power
• Many System Protections Available
• Led Light Indicator
• CE Certification

• DC DIN Mount Circuit Breaker
• Rated for up to 500VDC @ 100A
• Mechanical life >10,000 Cycles

• TPDIN¨ MPPT 48V 20A Solar Controller
• Temperature Compensated Smart Battery Charging
• 7 Port Gigabit PoE Switch
• Remote Monitor and Control
• 48V or 24V User Selectable Output Voltage

• MPPT Temperature Compensated Charging
• Fully Automatic Operation
• LCD Displays: Battery Volts, Battery Temp, Battery Level, Load Current and Solar Current
• Autoranging 12V or 24V Battery Arrays
• Multimode Load Operation Ð 5 selectable modes

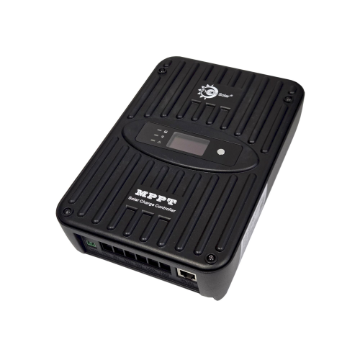

• 60A MPPT Solar Controller
• MPPT Temp Compensated Charging (99.5% Efficient)
• Included Bluetooth Interface for Monitor and Control
• OLED Blue Display for higher visibility in varying light conditions
• Auto-ranging 12V, 24V,36V or 48V Battery Arrays

• Incl Bluetooth Interface and Mobile App
• OLED Display for better visibility
• 99.5% MPPT Efficiency
• 60A Battery Charge, 30A Load Control
• Fanless Design

• Included Bluetooth Interface and Mobile App
• OLED Display for better visibility
• 99.5% MPPT Efficiency
• 40A Battery Charge, 20A Load Control
• Fanless Design

• DC DIN Mount Circuit Breaker
• Rated for up to 250VDC @ 100A
• Mechanical life >10,000 Cycles

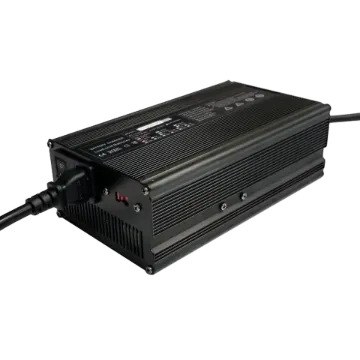

• 900W Total Power
• AC Battery Charger
• Over-Voltage, Over-Current, Over-Temp, Over-Load, and Short-Circuit Protections
• LED Indicator: Red = Charging, Green = Battery Full
• Wide Temperature Operation
• CE and FCC Certifications

• 802.3at/bt PoE Input Charges 12/24V Batteries from Solar Panel and/or PoE
• 802.3at 35W PoE Output
• 10A Aux Output (VOUT = Battery Voltage)
• Supports up to 120W/240W Total Device Load
• DIN Rail Mount Kit Included
• Low Self Consumption < 1.2W
• Compact and High Temperature Operation
