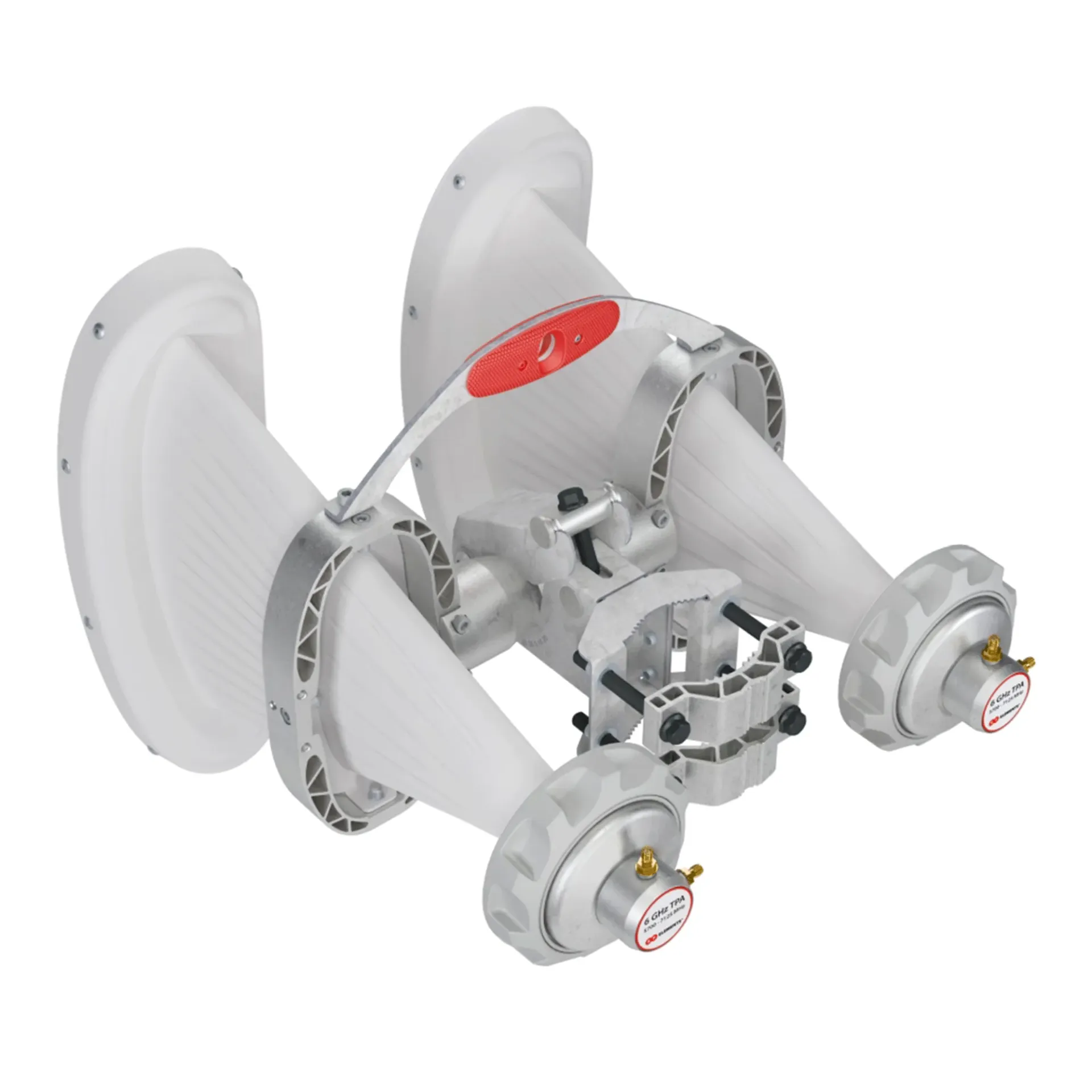

    RF Elements AH60WB-4x4-SMA Wideband Asymmetrical 4x4 Horn 60°

    Manufacturer: RF Elements

    • • Frequency Range: 4900 - 7125 MHz
    • • Gain: 17 dBi
    • • Azimuth Beam Width -6 dB: H 60°/V 60°
    • • Elevation Beam Width -6 dB: H 25°/V 25°
    • • Mechanical Adjustment: ±20° Elevation, ±20° Azimuth

    SKU: RFE-AH60WB-4X4-SMA
    Availability:
    Ohio : 0
    Utah : 0
    $599.00
    i h h

    6 GHz Asymmetrical Horn WB Antennas are designed to cover both 5 GHz and 6 GHz unlicensed bands. They provide unique asymmetrical beam shape and are equipped with our proprietary game-changing TwistPortTM waveguide connector. 6 GHz Asymmetrical Horn WB Antennas are the evolution of breakthrough award winning 5 GHz Asymmetrical Horn TP Antennas. They provide substantial improvements in wideband performance, new features and brand new industrial design.

    Asymmetrical Horn WB Antennas provide excellent noise rejection, network scalability and throughput increase in more than a 2.000 MHz wide band of operation(!) which is unheard of. Asymmetrical Horn WB Antennas re-define sector antenna performance for Wireless Internet Service Providers (WISP) networks.

    6 GHz Asymmetrical Horn WB Antennas provide more than 2,000 MHz wideband of operation covering whole 5 and 6 GHz unlicensed spectrum! Such a wide working band provides high level of investment protection and flexibility in terms of future deployments.

    6 GHz Asymmetrical Horn WB antennas excel for wideband application requiring both 5 GHz and 6 GHz bands to be covered by a single antenna. Just pair them with appropriate wideband TPA feed and you will get the best horn antenna on the market.

    New 6 GHz WB horn antennas also provide great performance when paired with any of our narrowband 5 GHz or 6 GHz TPA. This versatility makes them a future proof investment covering deployment scenarios in both 5 and 6 GHz unlicensed bands.

    6 GHz Asymmetrical Horn WB Antennas have unique beam shape. The beam cross-section in bore sight is elliptical: it is wide in azimuth and narrow in elevation plane. This beam shape provides wide coverage pattern with increased antenna gain. The beam shape reminds one of a standard automotive fog light.

    The beam patterns and the antenna gain of our new 6 GHz Asymmetrical Horn WB antennas are well balanced over the whole 2.000 MHz wide working frequency band for both H and V polarization! To achieve the uniformed antenna beam patterns in such a wide working band is an extremely difficult task even for the best antenna engineers. With 6 GHz Asymmetrical Horns WB, our engineers have substantially re-defined the standards for wideband horn antenna beam performance. This level of antenna performance opens for new opportunities and deployment strategies that are unique to RF elements 6 GHz Asymmetrical Horn WB Antennas.
